TC Series Temperature Controller TC系列温控器

High Reliability by S.M.T. & TQC.With Cold Junction Compensation,Suited to Operated at -20 C ~+60 C All type with Sensor Break Alarm LED.With P+D Control to Control Temperature Easily. High Accuracy of Displaying & Setting Less than 0,5% of F.S.With Stand-by/Over-heat Alarm.( Optioned ).With Heater Break Alarm.( Optioned ).

■Guiding of Model

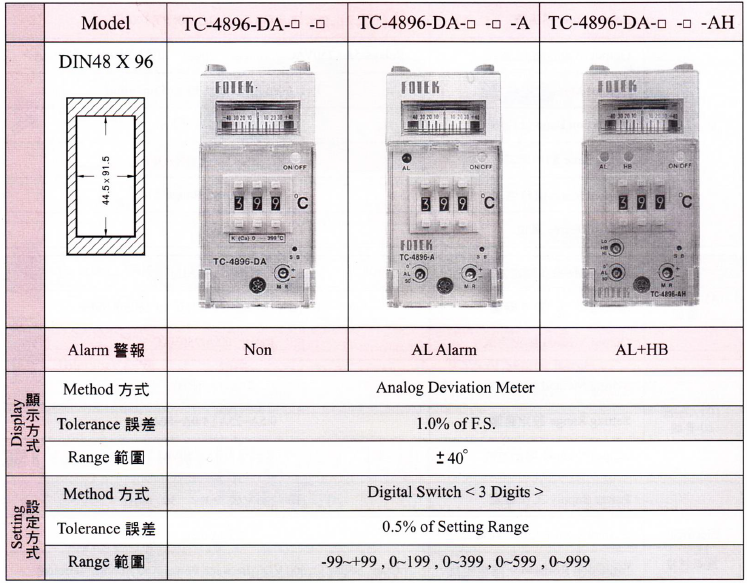

Ex. TC - 4896 D A - PT - R 3 - F - S - A

1      2    3  4     5   6  7  8    9   10

①Product產品代號

TC = Temperature Controller

②Outline外型

48 = 48(W) X 48(H) mm X mm 4896 = 48(W) X 96(H) mm X mm 72 = 72(W) X 72(H) mm X mm 96 = 96(W) X 96(H) mm X mm

③Method of Setting設定方式

D = Digital Swith A = Trimmer

0 Method of Display 顯示方式

A = Analog Deviation Meter D = Digital LED Display N = Without Display

(5) Type of Sensor感溫線種類

PT-RTD PT-100 Q J = J Type Thermocouple Non = K Type Thermocouple

⑥ Method of Output 輸出方式

7.Range of Settig 設定範圔

8.Digital SwitchTrimme

0 =-99〜+ 9905 =-50 〜+50

1 =0〜+1991 =0 〜+100

3 =0〜+3992 =0 〜+200

5 =0~ +5994 =0 〜+400

9 =0〜+9996 =0 〜+600

11 =0-+119912 =0 〜+1200

(9)Method of Control

S = ON/OFF non = P+D ON/OFF

⑩Alarm警報

A = With Stand-by / Over Heat Alarm AH = With Stand-by / Over Heat Alarm & Heater Break Alarm Non = Without Alarm

       General Data 共同規格      Sensor Type        感溫線        K,JorPT-100 Q

Output Method輸出方式Relay< 5A / 250VAC >,Voltage < 20mA /12V >,Linear < 4~20mA >

Control Method 控制方式P+D ON/OFF, ON/OFF or Proportion

Proportion Band 比例帶Appro 2.5%ofF.S.

Cycle Time動作週期2 Sec or 20 Sec < ON+OFF >

Manual Reset偏移修正Trimmer;，Range ±10 〇

Unit of Degree 單位°C or°F

       AL Alarm A1警報       Setting Method設定方式         Trimmer (AL)

Setting Range設定範圍0 〜+50〇，0 〜-50〇 or -50〇〜+50〇 of Setting Value

Output Method輸出方式Relay, 0.5A/250VAC

       HB Alarm Hb警報           Setting Method 設定方式           Trimmer (HB)

Setting Range設定範園0.5A 〜25A; 1.0A 〜50A

Output Method輸出方式Relay, 0.5A/250VAC

        Electrical  Data     电氣規格           Power Supply工作鼋壓            110/220VAC±20% 50 / 60Hz

Current Consumption 耗电流2.5VA max.

Insulation Resistance 絕緣阻抗Over 50M Q /500 VDC Between Power And Another Terminal

Dielectrical Strength 耐壓強度Over 2.5KV / lmin Between Power And Another Terminal

        Mechanical  Data  機械規格Operating

        Temp./Hum 工作環境                         -20〇C ~+60〇C ; 35%〜85% RH

Vibration Resistance 耐振動10~55Hz / 1.5mm, 2Hrs in X.Y.Z Direction

Panel Thickness 面板厚度1.0〜8.0mm
